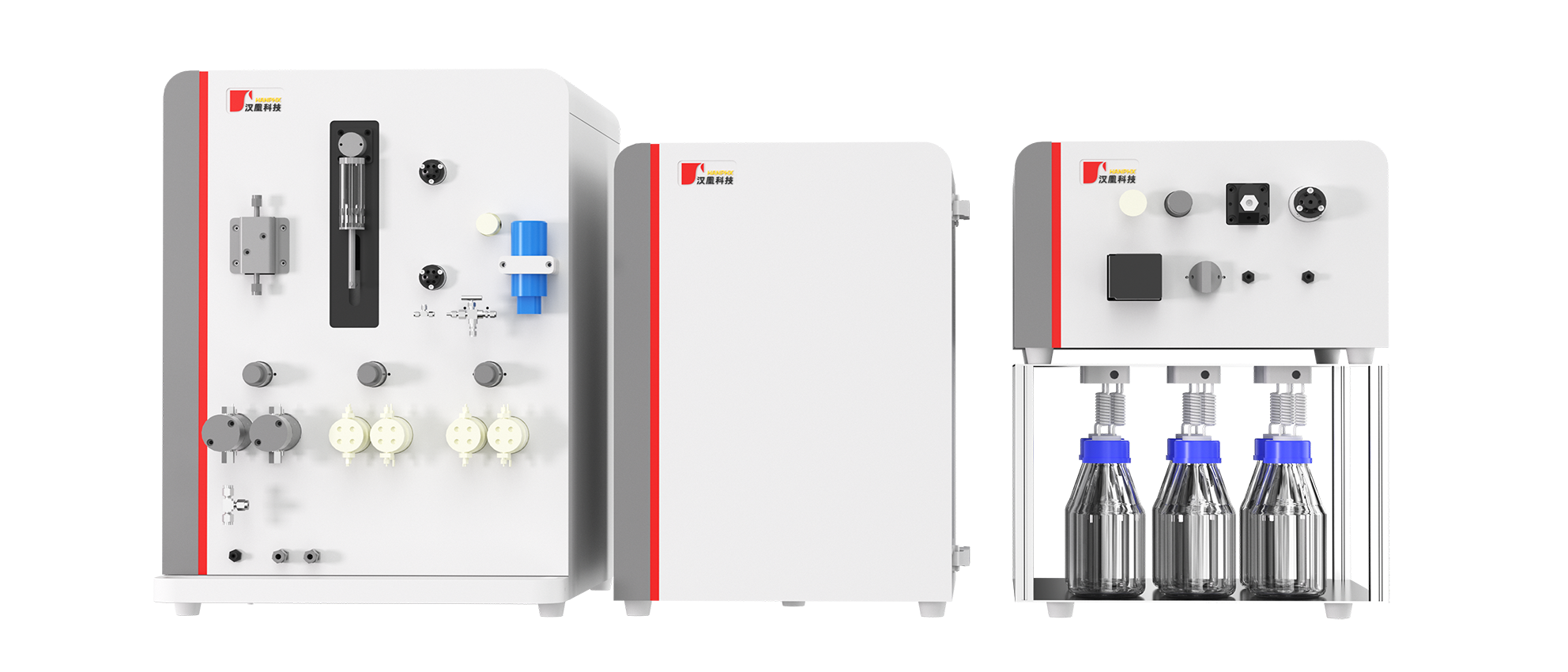

Supercritical Fluid Chromatography

SFC (Super Fluid Chromatography) provides precise control over the strength, pressure, and temperature of the mobile phase, enabling fine adjustments to the separation ability and selectivity of the system. This flexibility allows for accurate tuning of the chromatographic conditions to achieve optimal separation and desired analytical outcomes. Supercritical fluid chromatography equipment is designed to harness this technology, offering versatility and efficiency in the analysis and purification of complex mixtures.

Types of Supercritical Fluid Chromatography Equipment

Analytical Supercritical Fluid Chromatography
Analytical Supercritical Fluid Chromatography
The supercritical fluid used in analysis The mobile phase of a chromatograph is a supercritical fluid with good mass transfer and dissolving properties, such as CO2. The mobile phase's flow rate, composition, system temperature, and pressure are all adjusted to optimize the conditions for analysis and preparation.
SFC-Dynamic Axial Compression Column
SFC-Dynamic Axial Compression Column
The loading technology used by SFC-Dynamic Axial Compression Column (DAC) is the most advanced in the field of preparative chromatography. With the capabilities of a packed column machine and chromatographic column, it can self-load, maintain column pressure, and self-unload.
CO₂ Booster Station
CO₂ Booster Station
A CO2 booster station is a sort of piston-style booster pump that is powered by compressed air. In order to pressurize the pressurized CO2 in a specific ratio, it drives and creates high pressure fluid at the small area piston end using low pressure gas from the large area piston end.
Chiral Splitting Using SFC (Super Fluid Chromatography)
Chiral Splitting Using SFC (Super Fluid Chromatography)

Chiral Splitting Using SFC (Super Fluid Chromatography)

Since the "reaction stop" incident, countries have started to pay attention to the pharmacological activity of isomers in chiral drugs because of the different activities of different isomers. The main chiral dismantling methods are:

  • Crystallization

  • Chemical cleavage

  • Biological dismantling

  • Chromatographic methods, including gas chromatography, for the separation of volatile chiral substances; high performance liquid chromatography (HPLC), which uses a chiral stationary phase with good stability, is an important chiral separation method; supercritical fluid chromatography (SFC), which is environmentally friendly, highly efficient, has a large sample throughput and low cost, has increasingly replaced HPLC as the first choice for chiral separation.


The Difference Between SFC and HPLC


Preparative high-performance liquid chromatography (Prep HPLC) has been one of the most commonly used purification techniques for over 20 years. Specifically, it is a popular separation process in the fine chemicals, pharmaceutical, and biotechnology industries and is widely used in product purification operations. Over this time, Prep HPLC has developed into a fairly effective and applicable technique, particularly for non-chiral purifications.


Although popular, Prep HPLC has several drawbacks. The volume of the mobile phase required to purify a specified mass of the compound is large compared to the total sample volume being processed. A typical Prep HPLC fraction contains a large amount of solvent (organic and aqueous) and because of the time required to dry and collect the final product a major advantage of Prep SFC is that the use of CO2 replaces most of the mobile phase, saving solvent usage. This is a major advantage of Prep SFC, as it uses CO2 to replace most of the mobile phase, saving solvent use and effort.


A major advantage of Prep SFC is that it uses CO2 instead of most of the mobile phase, saving solvent usage and making it greener. In SFC purification system, the separation efficiency is better due to the low viscosity and high diffusion rate of the mobile phase, allowing for faster and more efficient chromatographic separations.
